LM48 ABS Resin Detection Distance Inductive Proximity Sensor Infrared , Two Wire

Name: LM48 ABS Resin Detection Distance Inductive Proximity Sensor Infrared Two Wire
Brand: Winston/OEM
Price: 1 USD

Best LM48 ABS Resin Detection Distance Inductive Proximity Sensor Infrared , Two Wire wholesale

Brand Name : Winston/OEM

Model Number : LM48

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Standard detected object : A3 iron

DC/AC : 200Hz/10Hz

OEM : YES

ODM : YES

Aviation connector : YES

Repeated precison : 0.2

Output state : NO/NC/NO+NC

Operating temperature : -25 ~ +75 ℃

Protection degree : IP 67

Shell Material : ABS Resin

Insulation resistance : 50MΩ

Condition : Original new

Contact Now

LM48 ABS Resin Detection Distance Inductive Proximity Sensor Infrared , Two Wire

Technique parameter

Model NO.	Detection distance	Detection distance	Output		Flush
Model NO.	Detection distance	Detection distance	Form	State	Flush
LM48-3020NA	20mm	DC6-36V	NPN	NO	Non-flush
LM48-3020NB	20mm	DC6-36V	NPN	NC	Non-flush
LM48-3020NC	20mm	DC6-36V	NPN	NO+NC	Non-flush
LM48-3020PA	20mm	DC6-36V	PNP	NO	Non-flush
LM48-3020PB	20mm	DC6-36V	PNP	NC	Non-flush
LM48-3020PC	20mm	DC6-36V	PNP	NO+NC	Non-flush
LM48-3020LA	20mm	DC6-36V	Two wire system	NO	Non-flush
LM48 -3020LB	20mm	DC6-36V	Two wire system	NC	Non-flush
LM48 -2020A	20mm	AC90-250V	SCR Control label silicon	NO	Non-flush
LM48-2020B	20mm	AC90-250V	SCR Control label silicon	NC	Non-flush
LM48 -2020C	20mm	AC90-250V	SCR Control label silicon	NO+NC	Non-flush

Features:

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Many output forms
5 . High on-off frequency
6 . Dust proof,vibration proof,water proof and oil proof.
7 . With short-circuit protection and inverted connecting protection.
8 . Long service life

Model explanation of proximity switch

LM 18 30 05 N A □ / L

—— —— - —— —— —— —— —— ——

1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01:1mm 05:5mm 10:10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1. Bottle lid detection

2. Stopper detection of grinding machine

3. Arm location detection of robot

4. Inspection of the exiating of milk inside the paper package

5. Spacing detection

Dimension

LM48 ABS Resin Detection Distance Inductive Proximity Sensor Infrared , Two Wire

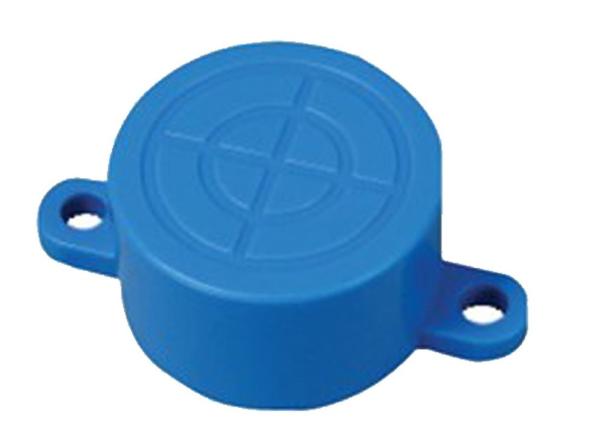

Product Picture

LM48 ABS Resin Detection Distance Inductive Proximity Sensor Infrared , Two Wire

Why choose us:

1. Quality guaranteed:

Special supervision team to control quality

All the products will be inspected carefully before delivery

2. quality and finish time guaranteed, Deliver the goods accredit to negotiation or within 7 days after we get your payment.

3. Competitive price with high quality.

4. After service guarantee. Assure you the best services at all times.

5. OEM & ODM available; Large quantities of the same specifications, quality standards, the time control is our strength.

6. Favorable and professional shipping,Worldwide shipping available
